Building Access Control Wall/Standing 8 Inch Android Based Panel Terminal Support Wiegand Relay RS485

Shenzhen Sibo Industrial & Development Co.,Ltd.
Contact Now
    Buy cheap Building Access Control Wall/Standing 8 Inch Android Based Panel Terminal Support Wiegand Relay RS485 from wholesalers

    Buy cheap Building Access Control Wall/Standing 8 Inch Android Based Panel Terminal Support Wiegand Relay RS485 from wholesalers
    • Buy cheap Building Access Control Wall/Standing 8 Inch Android Based Panel Terminal Support Wiegand Relay RS485 from wholesalers
    • Buy cheap Building Access Control Wall/Standing 8 Inch Android Based Panel Terminal Support Wiegand Relay RS485 from wholesalers
    • Buy cheap Building Access Control Wall/Standing 8 Inch Android Based Panel Terminal Support Wiegand Relay RS485 from wholesalers
    • Buy cheap Building Access Control Wall/Standing 8 Inch Android Based Panel Terminal Support Wiegand Relay RS485 from wholesalers

    Building Access Control Wall/Standing 8 Inch Android Based Panel Terminal Support Wiegand Relay RS485

    Ask Lasest Price
    Brand Name : Sibo Or OEM
    Model Number : SV-1081D
    Certification : CE
    Payment Terms : PayPal,Bank Wire,Western Union etc.
    Supply Ability : over 3000 units each month
    Delivery Time : 7 days for sample order,25 days for batch order
    • Product Details
    • Company Profile

    Building Access Control Wall/Standing 8 Inch Android Based Panel Terminal Support Wiegand Relay RS485


    Building Access Control Wall/Standing 8 Inch Android Based Panel Terminal Support Wiegand Relay RS485

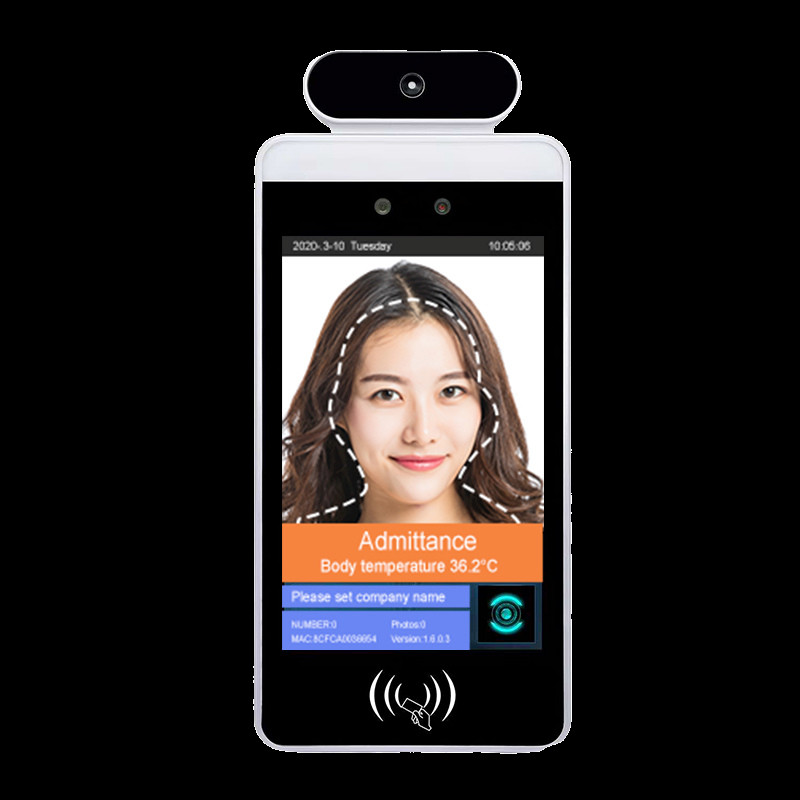

    No Contact, indoor/outdoor, access management, temperature measurement & face recognition uses Rockchip RK3288 high-performance hardware platform, equipped with industrial-class binocular camera(optional monocular camera), real time face recognition technology and infrared thermal imaging module to support face-with-mask identify. It also supports expansion of various peripherals such as ID card readering (both 125Khz and 13.56Mhz RFID/NFC reading), etc., which can be applied to gate passages and attendance system to achieve safe and efficient access control/hospital facilities and other AI applications.
    Face Recognition Temperature Measurement Access Control Panel 8 Inch Android POE tablet
    Face Recognition Temperature Measurement Access Control Panel 8 Inch Android POE tablet
    Face Recognition Temperature Measurement Access Control Panel 8 Inch Android POE tablet
    * Supports accurate face recognition and comparison while wearing a mask.
    * The measurement error is plus or minus 0.5 ℃.
    * It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.
    Face Recognition Temperature Measurement Access Control Panel 8 Inch Android POE tabletFace Recognition Temperature Measurement Access Control Panel 8 Inch Android POE tablet

    DIMENSIONS
    Model
    SW-1081D
    Camera
    Resolution
    2 million pixels
    Type
    Binocular wide dynamic camera
    Aperture
    F2.4
    Focusing distance
    50-150cm
    White balance
    auto
    Photo flood light
    LED and IR dual photo flood light
    Screen
    Size
    8.0 inch IPS LCD screen
    Resolution
    800×1280
    Touch
    Not supported (optional support)
    Processor
    CPU
    RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
    Storage
    EMMC 8G
    Interface
    Network module
    Ethernet and wireless (WIFI)
    Audio
    2.5W / 4R speakers
    USB
    1 USB OTG, 1 USB HOST standard A port
    Serial communication
    1 RS232 serial port
    Relay output
    1 door open signal output
    Wiegand
    One Wiegand 26/34 output, one Wiegand 26/34 input
    Upgrade button
    Support Uboot upgrade button
    Wired network
    1 RJ45 Ethernet socket
    Function
    Face Detection
    Supports detection and tracking of multiple people at the same time
    Face library
    Up to 30,000
    1: N face recognition
    Support
    1: 1 face comparison
    Support
    Stranger detection
    Support
    Identify distance configuration
    Support
    UI interface configuration
    Support
    Upgrade remotely
    Support
    Interface
    Interfaces include device management, personnel / photo management, record query, etc.
    Deployment method
    Support public cloud deployment, privatized deployment, LAN use, stand-alone use
    Infrared thermal imaging module
    Temperature detection
    Support
    Temperature detection distance
    1 meter (optimal distance 0.5 meter)
    Temperature measurement accuracy
    ≤ ±0.5℃
    Temperature measurement range
    10℃~42℃
    Thermal field of view
    32 X 32℃
    Visitors' temperature is normal and released directly
    Support
    Abnormal temperature alarm
    Support (temperature alarm value can be set)
    General parameters
    Power
    DC12V(±10%)
    Operating temperature
    0℃~60℃
    Storage temperature
    -20℃~60℃
    Power consumption
    13.5W(Max)
    Installation method
    Screwed by wall mount bracket
    Size
    Standard:274.24*128*21.48(mm)
    IC card / ID card:296.18*132.88*25(mm)
    Packing list
    Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1
    WIRE INTERFACE
    9 Wire Interface:
    Face Recognition Temperature Measurement Access Control Panel 8 Inch Android POE tablet
    INSTALLATION
    Wall mount:
    Face Recognition Temperature Measurement Access Control Panel 8 Inch Android POE tablet
    Stand mount:

    Face Recognition Temperature Measurement Access Control Panel 8 Inch Android POE tablet



    Face Recognition Temperature Measurement Access Control Panel 8 Inch Android POE tablet

    Face Recognition Temperature Measurement Access Control Panel 8 Inch Android POE tablet
    Face Recognition Temperature Measurement Access Control Panel 8 Inch Android POE tablet

    Q&A

    Q:Are you manufacturer?
    Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.


    Q: What is the minimum order?
    We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

    Q: Can we get the free sample?
    Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.


    Q: What's Your MOQ?

    To support customer, ERhino Industrial PDAs devices/rugged phones MOQ quantity will be 1 piece,we can even customized with your logo if needed.


    Q: Can i choose multiple function into 1 device?

    A: Yes, you can choose multiple fuction into one rugged tablet, optional functions:NFC,RS232/RS485/GPIO,LED Light etc.


    Q: How to order and pay?

    A: We accept T/T (bank transfer), Western Union,Paypal etc.


    Q: What's Your Products Warranty?

    A: We Offer 12 Months Warranty after shipment sent.


    Q: How long it will take for delivery?

    A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.


    Q:How to repair the device if any problem ?

    A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.


    Q: Can you do customized and preload our software?

    Yes, with many years electronic products manufacturing experience, we can support customized order for you.
