OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk

Shenzhen Sibo Industrial & Development Co.,Ltd.
Contact Now
    Buy cheap OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk from wholesalers

    Buy cheap OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk from wholesalers
    • Buy cheap OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk from wholesalers
    • Buy cheap OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk from wholesalers
    • Buy cheap OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk from wholesalers
    • Buy cheap OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk from wholesalers
    • Buy cheap OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk from wholesalers

    OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk

    Ask Lasest Price
    Brand Name : Sibo
    Model Number : Q7
    Certification : CE FCC RoHS
    Payment Terms : PayPal,Bank Wire,Western Union etc.
    Supply Ability : over 3000 units each month
    Delivery Time : 7 days for sample order,25 days for batch order
    • Product Details
    • Company Profile

    OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk

    OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk​


    This newly developed industrial 7 inch android wall mounted tablet supports wall flush mount,magnetic or customized mounting bracket.


    Available to customize POE,RS232/RS485,GPIO etc optional configurations based on your specific demand.


    Free to provide the customized splash screen with clients logo and to pre-install clients apks.


    Specification:

    Model NumberQ7
    Hardware SpecsProcessorAllwinner A40i processor
    CPUQuad-Core ARM Cortex A7 CPU, 1.2Ghz
    Display7" IPS Display, Resolution:1024 X 600
    RAM1GB
    Nand Flash8GB

    Software FeatureSystemGoogle Android 7.1.1 OS rooted,built-in google play store
    VideoH.264 2160p video decoding,
    Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
    H.264 High Profile 1080p@30fps or 720@60fps encoding
    3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
    Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
    LanguageSupport multi-languages

    InterfacesTopUboot
    TF slot
    Mirco USB (OTG)
    BackDC IN Power Terminal 12V
    Ethernet Interface(RJ45)
    Optional: GPIO 1, GPIO2, UART
    Optional:RS232, RS485

    NetworkWIFI+BLUETOOTHWiFi 2.4G, Bluetooth 4.0
    LAN PortEthernet RJ45

    Power SupplyDC INDC 12V

    Power over Ethernet or PoE technology describes a system to safely transfer electrical power, along with data, to remote devices over standard category 5 cable in an Ethernet network. It does not require modification of existing Ethernet cabling infrastructure.
    The IEEE 802.3af PoE standard provides up to 15.4 W of DC power (minimum 44 VDC and 350 mA) to each device. Only 12.95 W is assured to be available at the powered device as some power is dissipated in the cable.
    Long distance transmission is available for our max power need about 7w, safe and easy to be used with other POE switch or POE injector ( IEEE 802.3af PoE standard)
    What is PD and PSE?
    Power Over Ethernet, IEEE802.3af, is constructed by Power Sourcing Equipment (PSE) and Power Device (PD). Our Android Tablet works as a PD and which could powered by some PSE (POE injetor / POE switch)
    In/OutprotocolApplication
    PD
    Power Device
    Power Input
    from Ethernet(RJ45)
    InputPOE 802.3 AF(15.4W)Home automation / Safety & protection
    POE 802.3 AT(30W)
    Benefits:
    OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk
    • Cost Saving
    PoE significantly reduces the need for electricians to install conduit, electrical wiring, and outlets throughout the enterprise. With PoE only one cable – a simple CAT-5 Ethernet – is required. Estimates of cost savings using PoE range from $500 to $1,000 per port. In larger settings, this represents a major cost reduction.
    OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk
    • Flexibility
    A PoE appliance or device can be located anywhere without the need for AC outlets. For example, wireless LAN access points can be located – and relocated – on or near ceilings, to fine tune optimum RF reception. For example, customers often find that access points are more effective on the ceiling, out of reach from an AC outlet.
    OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk
    • Reliability
    Because PoE networks have fewer wires, there is less likelihood of an inadvertent power disruption (accidental shut off, etc). With an Uninterrupted Power Supply (UPS) power to the devices is assured during a power failure.
    OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk
    • Network Control
    Using SNMP, network administrators can monitor and control powered devices, including resetting or shut-off. This allows increased security, as devices can be powered down when not in use, or if there is unauthorized access.
    OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk
    • Safety
    Power mains are eliminated. Since only 48v DC is used, PoE conforms to Underwriter's Laboratories (UL) Safety Extra Low Volt
    SIBO Q896 Android Tablet PC RJ45 POE


    Basic specification

    • Android 7.1.1 OS rooted
    • POE (optional)
    • microphone
    • speakers
    • DC IN 9V-24V
    • RJ45 Ethernet port
    • micro USB 2.0 port,sd card slot
    • RS232/RS485/GPIO optional

    Screen

    • IPS screen
    • capacitive touch screen
    • Glass+Glass touch screen

    Network

    • Wi-Fi
    • Lan(Ethernet)
    • Bluetooth

    Advantages

    • Android OS Rooted,built in google play store
    • Kiosk mode,as booting up directly to auto-web
    • Auto run app when tablet starts up
    • Customize boot logo/ animation

    RS232/RS485/GPIO

    We will offer sample app for your testing and original source code for your program.


    OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk

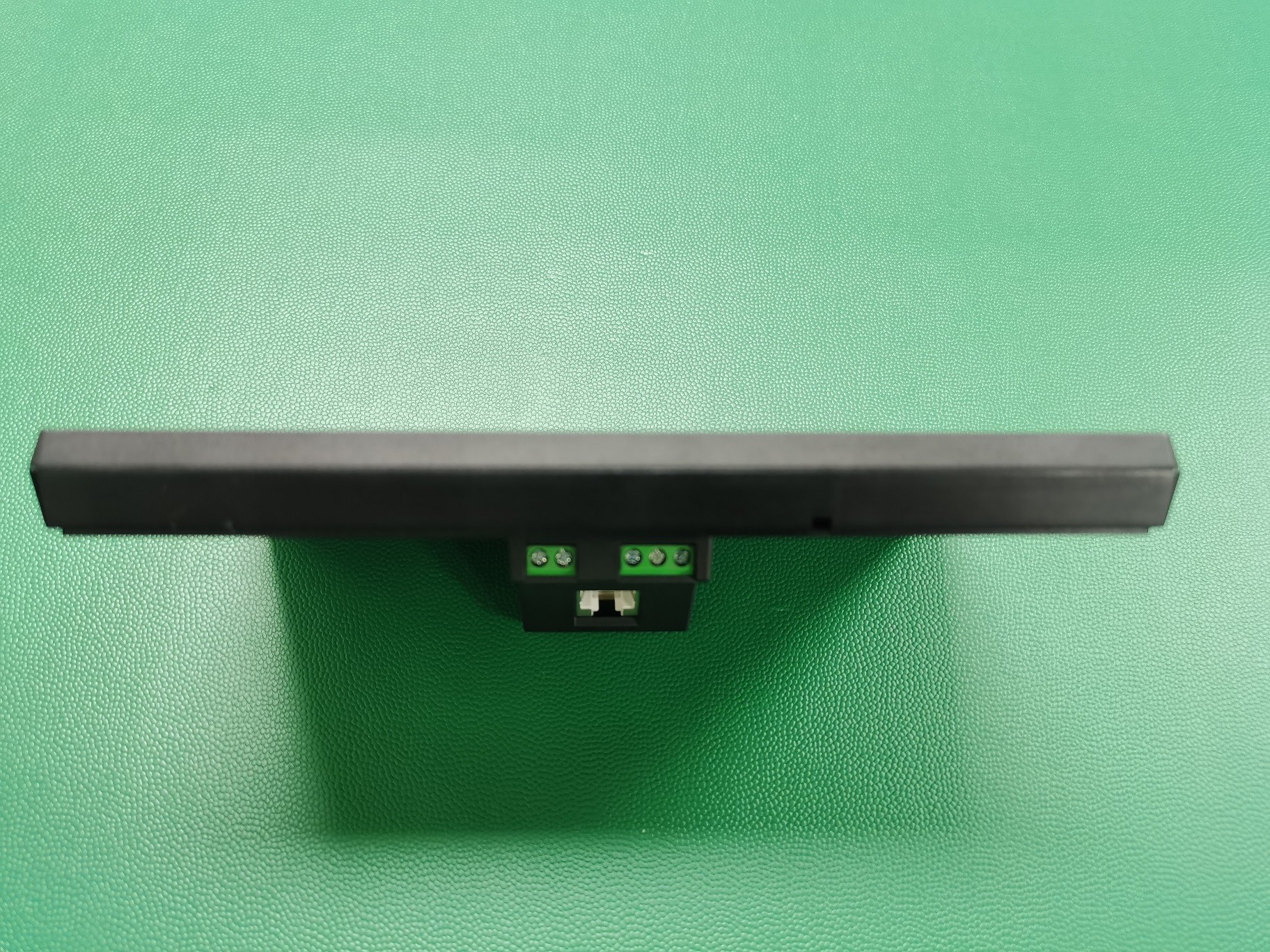

    Products Pictrues

    OEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI KioskOEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI KioskOEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI KioskOEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI KioskOEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI KioskOEM Wall Mounted 7 Inch Android Touch Screen Ethernet POE Tablet PC Auto Boot Industrial HMI Kiosk


    Our Services

    As a full service manufacturer of tablet, we offer OEM and ODM services.

    Custom Services:

    • Branding/Packaging
    • Custom logo/boot up splash screen
    • Pre-loaded apps

    Payment Terms

    1. For sample (Payment method: credit card, T/T, Western Union)
    2. For bulk order(more than100pcs), customers should pay 30% deposit first, 70% balance should be paid before delivery.(Payment method: T/T)

    FAQ

    Question: Are you manufacturer?

    Answer: Yes, we are professional manufacturer for home automation with the experience of 16 years.


    Question: What is the Minimum Order Quantity(MOQ)?
    Answer: No quantity limited, sample order is acceptable.


    Question: What is the lead time? (How long do you need to prepare my goods?)
    Answer: 5-7days for sample orders, 20-25 days for mass production orders(based on different quantities, OEM, etc.)


    Question: How will you deliver my goods to me?
    Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.


    Question: How long do I need to wait before my goods arrive?
    Answer: 3-5 days for international express



    Question: Can you put my brand name(logo) on these products?
    Answer: Of course, OEM service is the most important part of our trade purpose.


    Question: What service do you have?

    Answer: We have full-technique support(offer sample app and original source code for RS485,GPIO, NFC, etc.)


    Question: What is your warranty?
    Answer: Our warranty is 1 year after delivery,SIBO pays high attention to after-sales service. For those out of warranty, we repair you without labor charge collection.


    Question: What is your product quality?
    Answer: 1. We promise to use the best (original) components to ensure our product in high level.
    2. All products will be carefully tested by our QC department.
    3. Before test, all android tablet PC have 48 hours aging test.
